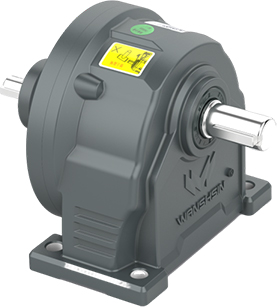

GHD Horizontal Type Dual Axis Gearbox

Overview
Technical Information
  • Strong load-bearing, using high-strength die-casting aluminum alloy shell and carburized hardness HRC62 gears.
  • Low noise, exquisite design, precision manufacturing, the noise is less than 65dB(A).
  • High efficiency, higher transmission efficiency than traditional bevel gear and worm gear reducer at the same speed ratio.
  • Maintenance-free, the whole machine is compact, the reducer is lubricated with grease, life-long maintenance-free.
  • Wide range of applications, a variety of models and installation methods are widely used in most industries.
  • Wide range of applications, various models and mounting methods are widely applicable to most industries.
Size GHD18/22/28/32/40/50
Ratio 3~200
Output Shaft Diameter 18-50mm(Support customized size)
Features
Parameters
Directory
Product Features
  • 1
    High torque, high load bearing
  • 2
    Low noise, maintenance-free
  • 3
    Wide power range, wide range of applications
  • 4
    Customized for many industries
OUTPUT TORQUE DIAGRAM

NORMAL TYPE
RATIO OUTPUT TORQUE OUTPUT TORQUE
RPM 0.1KW 0.2KW 0.4KW 0.75KW 1.5KW 2.2KW 3.7KW 5.5KW 7.5KW
50HZ 60Hz 50HZ 60HZ 50HZ 6OHZ 50HZ 60HZ 50HZ 60HZ 50HZ 60HZ 50HZ 60HZ 50HZ 60HZ 50HZ 60HZ 50HZ 60HZ
3 465 570 1.9 1.6 3.7 3.1 7 6 13 11 26 22 38 32 60 55 98 90 134 109
5 300 360 3.1 26 6.2 5.2 12 10 22 19 45 38 67.2 56 110 101 164 133 224 182
10 150 180 62 52 12.4 10.4 24 20 45 38 91 76 137 112 220 200 329 267 448 364
15 100 120 9.1 76 18 15 36 30 68 57 135 113 201 168 326 298 503 400 673 546
20 75 90 12 10 24 20 48 40 90 75 181 151 268 224 436 360 658 534 897 728
25 60 72 14 12 30 25 60 50 112 94 226 189 336 280 539 495 823 667 1222 910
30 50 60 18 15 36 30 73 60 135 113 271 226 403 336 647 588 987 801 1346 1092
40 37 45 22 19 46 39 93 78 175 146 349 291 520 434 863 784 1310 1068 1795 1456
45 33 40 27 22 54 44 109 91 206 170 414 340 598 496 985 817 1481 1201 2020 1638
50 30 36 28 24 57 48 116 97 219 183 436 364 621 543 1070 970 1644 1335 2444 1820
60 25 30 34 29 69 58 139 116 262 219 524 437 781 651 1270 1150 1975 1602 2693 2185
70 21 25 43 36 80 68 162 135 315 263 624 520 925 771 1550 1257 2304 1809
80 19 23 48 40 92 77 184 154 355 296 708 590 1050 875 1771 1437 2633 2136
90 17 20 52 44 103 86 207 173 393 328 771 643 1130 943 1993 1616 2963 2403
100 15 18 58 49 115 96 230 192 432 360 837 698 1260 1050 2215 1796 3292 2670
120 12 15 69 58 138 115 277 231 518 432 1010 837 1500 1450 2657 2155
140 11 13 80 67 160 134 320 267 597 498 1160 968
160 9 11 91 76 183 153 363 303 680 567 1320 1100
180 8 10 103 86 207 173 408 340 768 640 1480 1230
200 7 9 116 97 229 191 432 360 828 690
